Medium

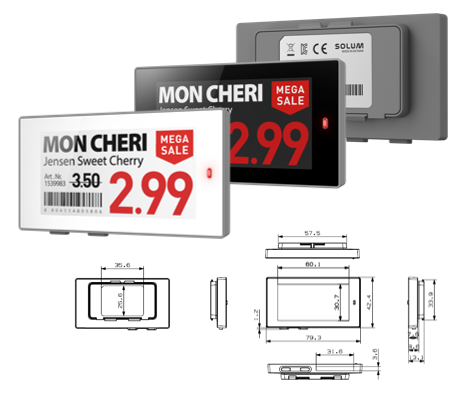

2.6″
| MODEL | W:EL026H3WRA/WWW B:EL026H3BRA/WWW |
| DIMENSION (mm) | 79.3 × 42.4 × 13.1 |
| ACTIVE DISPLAY AREA (mm) | 60.1 × 30.7 |
| RESOLUTION (Pixel) | 360 × 184 |
| PIXEL DENSITY | 152 dpi |
| DISPLAY TECHNOLOGY | Full Graphic E-ink Display |
| BEZEL COLOR | White or Black, Customizable Color(Optional) |
| PIXEL COLORS | BW / BWR / BWY |
| VIEWING ANGLE | Nearly 180˚ |
| USABLE PAGES | Up to 7 pages |
| OPERATING TEMPERATURE | 0 ~ 40℃ |
| NFC | FeliCa NFC Forum Type 3 |
| WATERPROOF | IP67 |
| BUTTON | 2 Buttons |
| LED | 7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White) |

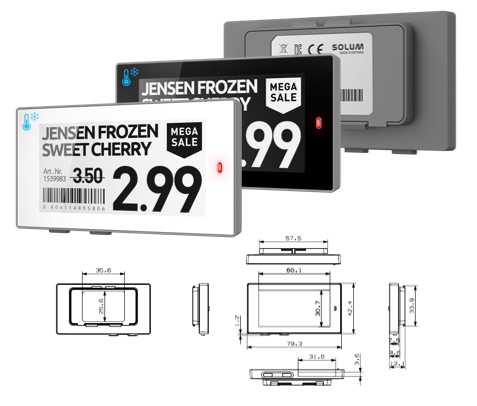

2.6″ Freezer
| MODEL | W:ELF26H3WMA/WWW B:ELF26H3BMA/WWW |
| DIMENSION (mm) | 79.3 × 42.4 × 13.1 |
| ACTIVE DISPLAY AREA (mm) | 60.1 × 30.7 |
| RESOLUTION (Pixel) | 360 × 184 |
| PIXEL DENSITY | 152 dpi |
| DISPLAY TECHNOLOGY | Full Graphic E-ink Display |
| BEZEL COLOR | White or Black, Customizable Color(Optional) |
| PIXEL COLORS | BW |
| VIEWING ANGLE | Nearly 180˚ |
| USABLE PAGES | Up to 7 pages |
| OPERATING TEMPERATURE | -25 ~ 0℃ |
| NFC | FeliCa NFC Forum Type 3 |
| WATERPROOF | IP67 |
| BUTTON | 2 Buttons |
| LED | 7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White) |

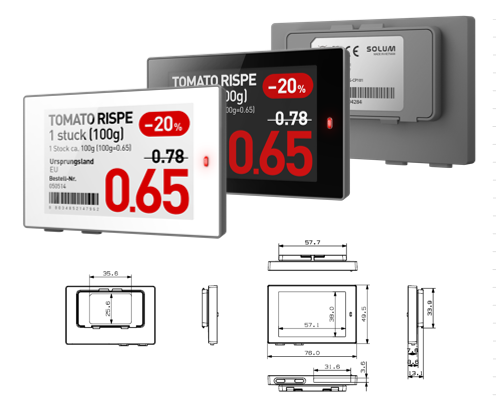

2.7″
| MODEL | W:EL027H3WRA/WWW B:EL027H3BRA/WWW |
| DIMENSION (mm) | 76.0 × 49.5 × 13.1 |
| ACTIVE DISPLAY AREA (mm) | 57.3 × 38.1 |
| RESOLUTION (Pixel) | 300 × 200 |
| PIXEL DENSITY | 133 dpi |
| DISPLAY TECHNOLOGY | Full Graphic E-ink Display |
| BEZEL COLOR | White or Black, Customizable Color(Optional) |
| PIXEL COLORS | BW / BWR / BWY |
| VIEWING ANGLE | Nearly 180˚ |
| USABLE PAGES | Up to 7 pages |
| OPERATING TEMPERATURE | 0 ~ 40℃ |
| NFC | FeliCa NFC Forum Type 3 |
| WATERPROOF | IP67 |
| BUTTON | 2 Buttons |
| LED | 7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White) |

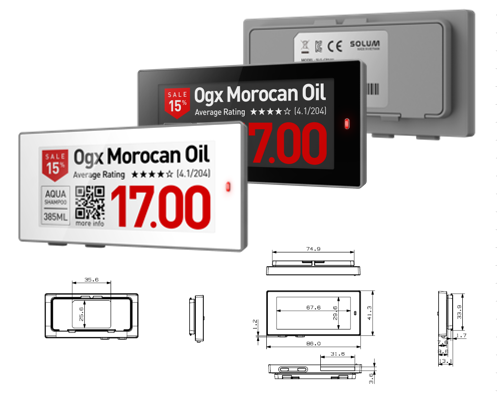

2.9″
| MODEL | W:EL029H3WRA/WWW B:EL029H3BRA/WWW |
| DIMENSION (mm) | 86.0 × 41.3 × 13.1 |
| ACTIVE DISPLAY AREA (mm) | 67.6 × 29.6 |
| RESOLUTION (Pixel) | 384 × 168 |
| PIXEL DENSITY | 144 dpi |
| DISPLAY TECHNOLOGY | Full Graphic E-ink Display |
| BEZEL COLOR | White or Black, Customizable Color(Optional) |
| PIXEL COLORS | BW / BWR / BWY |
| VIEWING ANGLE | Nearly 180˚ |
| USABLE PAGES | Up to 7 pages |
| OPERATING TEMPERATURE | 0 ~ 40℃ |
| NFC | FeliCa NFC Forum Type 3 |
| WATERPROOF | IP67 |
| BUTTON | 2 Buttons |
| LED | 7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White) |

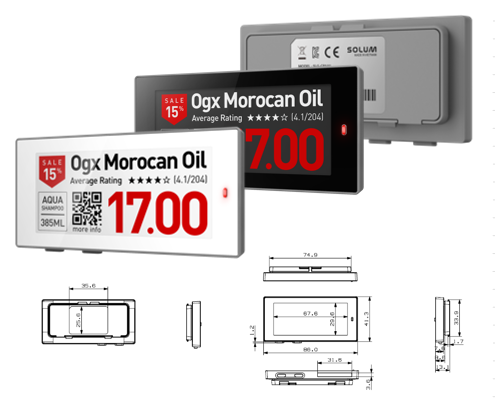

2.9″ Freezer
| MODEL | W:ELF29H3WMA/WWW B:ELF29H3BMA/WWW |
| DIMENSION (mm) | 86.0 × 41.3 × 13.1 |
| ACTIVE DISPLAY AREA (mm) | 67.6 × 29.6 |
| RESOLUTION (Pixel) | 384 × 168 |
| PIXEL DENSITY | 144 dpi |
| DISPLAY TECHNOLOGY | Full Graphic E-ink Display |
| BEZEL COLOR | White or Black, Customizable Color(Optional) |
| PIXEL COLORS | BW |
| VIEWING ANGLE | Nearly 180˚ |
| USABLE PAGES | Up to 7 pages |
| OPERATING TEMPERATURE | -25 ~ 0℃ |
| NFC | FeliCa NFC Forum Type 3 |
| WATERPROOF | IP67 |
| BUTTON | 2 Buttons |
| LED | 7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White) |
